Berenice Naval Base ShoreBox Installation
Strategic Naval Infrastructure Upgrade
Scope Of Work

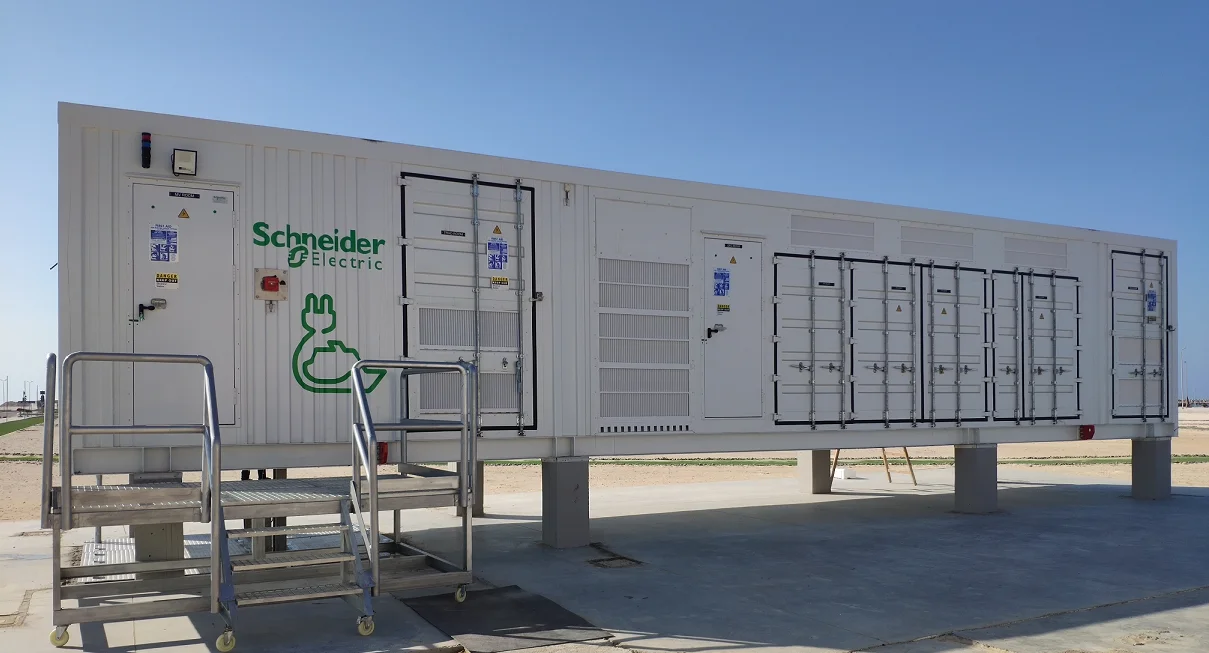

Custom Schneider ShoreBox System
- 440V/60Hz power conversion
- 9 hotel service connections (400A each)
- Integrated safety interlocks
Remote Site Challenges Addressed
- Desert climate hardening (55°C rated)
- Sand filtration for cooling systems
- Corrosion-resistant marine coatings
Technical Specifications
Component Specifications & Benefits
| Component | Specification | Benefit |
|---|---|---|
| Power Modules | 2.5MW capacity | Supports aircraft carriers |
| Control System | Automated load sharing | Prevents overloads |
| Safety Features | IP56 enclosure | Storm/dust protection |
Innovations
- Pre-fabricated cable ramps for rapid deployment
- Dual-fuel backup capability
Operational Impact
- Emissions: Eliminated 900 tons of CO2 annually
- Reliability: Zero service interruptions since commissioning
Information About the Project
| Location |
Berenice Naval Base, Alexandria, Egypt |
| End-User | Egyptian Navy |
| Award Date | May, 2019 |
| Contract | W912ER19-P-0019 |
The contractor continues to enhance their resources and expand their workforce with skilled tradespeople. Their safety plan, approved by the CEMED Safety Officer, demonstrates their safety commitment. The contractor's Safety Officer executes the plan diligently, with excellent coordination between Safety Office and RE.
The job-site supervisors' empowerment has increased effectiveness. The contractor implemented an organized tracking system to fully record, follow up, and warranty items. They've also improved reporting systems. As a result, the customer is extremely satisfied with the quality relative to cost.
Interdyne’s proactive management, strong communication, and tireless efforts to meet and exceed timelines have reflected very positively on the company.
Contractor overcame issues like unavailable parts and executed the tasks smoothly with full compliance. Performance met all contractual requirements.
Interdyne practiced the 3 C’s: Communicate, Coordinate, and Cooperate. Delivered 100% quality to USACE standards under extreme conditions.
