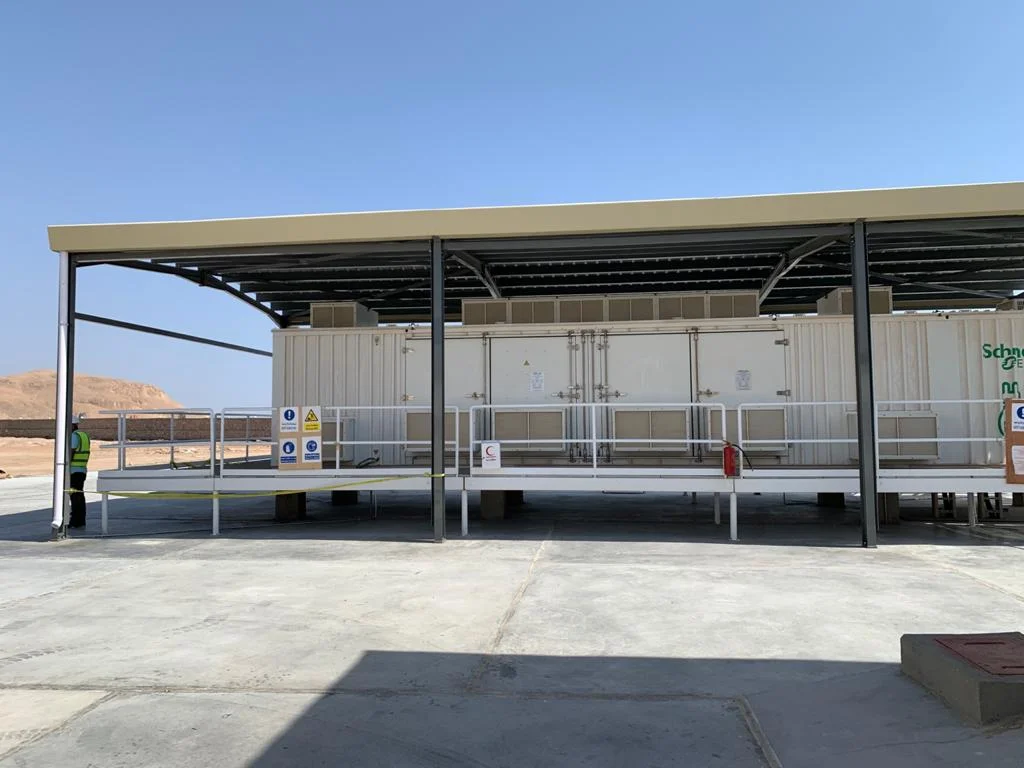

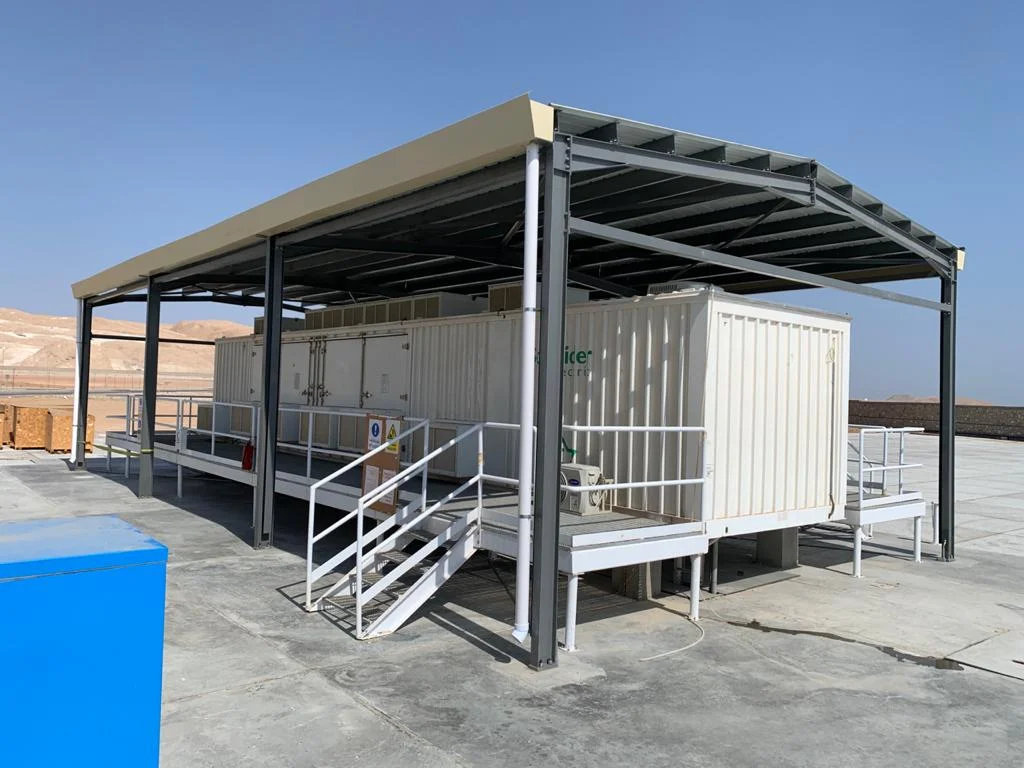

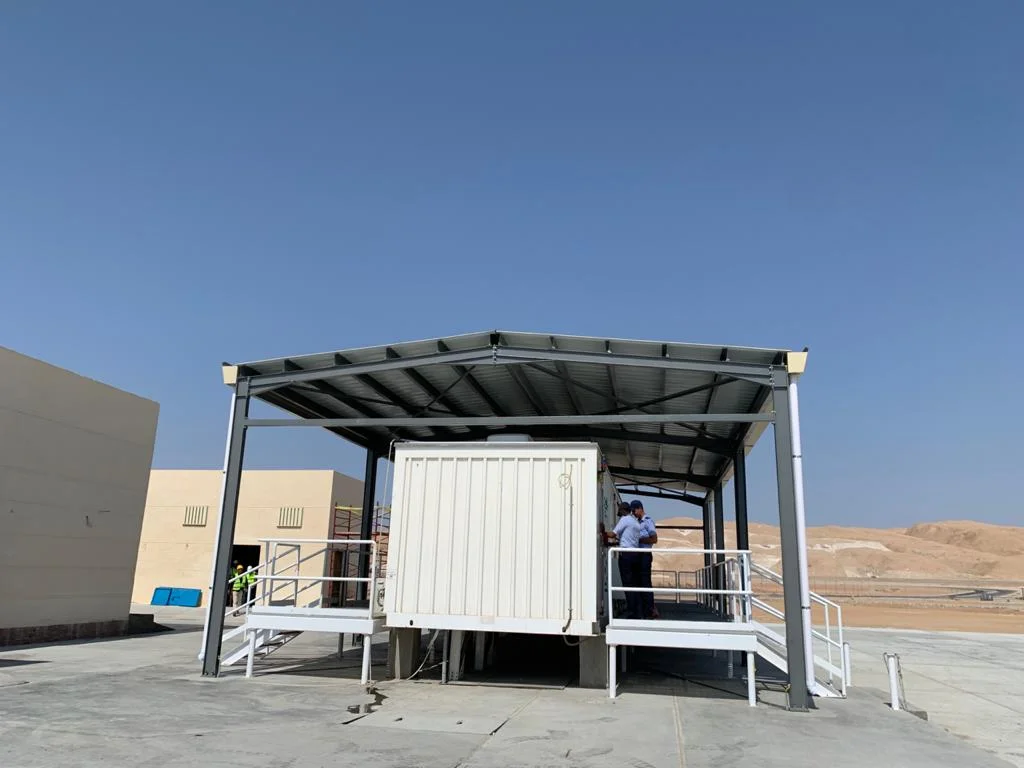

Berenice Naval Base ShoreBox Sunshade Installation
Project Objective
To enhance operational reliability of the strategic ShoreBox power system by installing a protective sunshade, mitigating extreme heat impacts (up to 50°C/120°F) that risked critical cooling system failures.
Technical Solution
Component Specifications
| Component | Specification | Functional Benefit |
|---|---|---|
| Sunshade Structure | Galvanized steel frame | Corrosion resistance in coastal environment |
| Canopy Material | UV-reflective PTFE membrane | Reduces surface temp by 20°C |
| Installation Method | Non-intrusive foundation | Preserves existing ShoreBox integrity |
Key Features
- 5° downward slope for rainwater runoff
- 2m clearance for maintenance access
- Sand-resistant coating for desert conditions
Environmental Adaptation
- Wind-rated for 130 km/h gusts
- Heat-reflective silver finish
Performance Results
- Temperature Control: Maintained stable 35°C interior (vs. 50°C ambient)
- System Uptime: Eliminated 100% of prior cooling-related shutdowns
- Durability: Zero maintenance required since installation
Information About the Project
| Location |
Berenice Naval Base, Red Sea, Egypt |
| End-User | Egyptian Navy |
| Award Date | August 2020 |
| Contract | W912ER20C0017 |
The contractor continues to enhance their resources and expand their workforce with skilled tradespeople. Their safety plan, approved by the CEMED Safety Officer, demonstrates their safety commitment. The contractor's Safety Officer executes the plan diligently, with excellent coordination between Safety Office and RE.
The job-site supervisors' empowerment has increased effectiveness. The contractor implemented an organized tracking system to fully record, follow up, and warranty items. They've also improved reporting systems. As a result, the customer is extremely satisfied with the quality relative to cost.
Interdyne’s proactive management, strong communication, and tireless efforts to meet and exceed timelines have reflected very positively on the company.
Contractor overcame issues like unavailable parts and executed the tasks smoothly with full compliance. Performance met all contractual requirements.
Interdyne practiced the 3 C’s: Communicate, Coordinate, and Cooperate. Delivered 100% quality to USACE standards under extreme conditions.
