Ras El Tin Naval Base ShorePower Modernization
Strategic Naval Infrastructure Upgrade

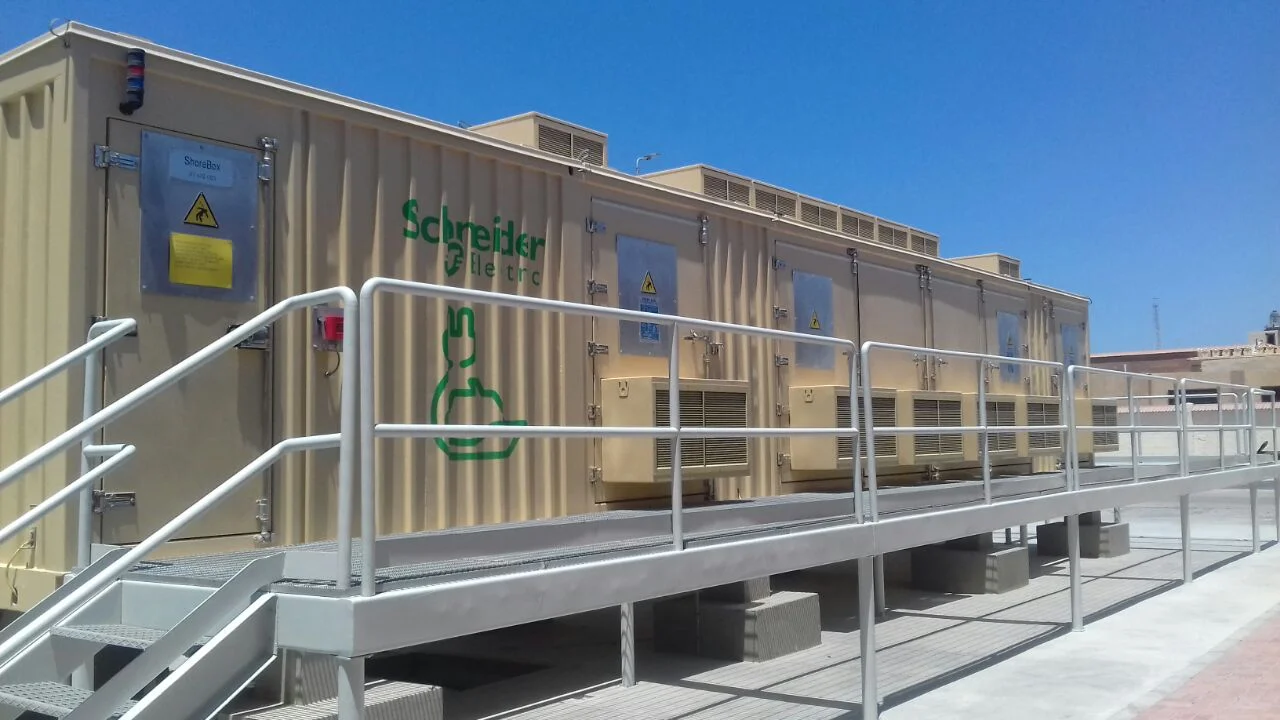

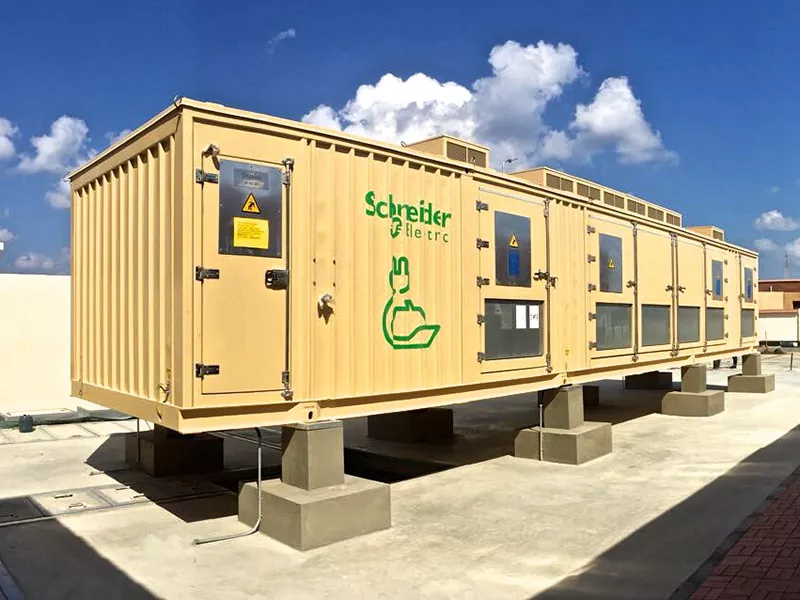

Custom Schneider ShoreBox Solution
- Power Capacity: 2.5MW (440V/60Hz)
- Connections: 9 hotel service points (400A each)
- Key Features:
- Harmonic filtering (<3% THD)
- Saltwater corrosion-resistant enclosure
- Dual-fuel backup capability
Multi-Phase Implementation
| Phase | Key Deliverables |
|---|---|
| 1 (2016) | ShoreBox procurement & factory testing |
| 2 (2017) | Pier electrical infrastructure upgrades |
| 3 (2017) | Turnkey installation & commissioning |
Technical Specifications
Component Standards & Operational Benefits
| Component | Standard | Operational Benefit |
|---|---|---|
| Power Modules | IEEE 45 | 99.98% uptime since install |
| Control System | MIL-STD-1399 | Automated load sharing |
| Safety Systems | NFPA 70E | Arc-flash protection |
Operational Impact
- Emission Reduction: 1,200 tons CO2 annually
- Reliability: Zero power interruptions in 5+ years
Execution Highlights
- Installed during active naval operations
- Custom-designed cable management for tidal variations
- Trained 30 Egyptian Navy technicians
Project Legacy
Follow-On Contracts
- 2018: Expanded to 3 additional piers
- 2019: Integrated solar hybrid capability
Information About the Project
| Location |
Ras El-Tin Naval Base, Alexandria, Egypt |
| End-User | Egyptian Navy |
| Award Period |
April 2016 - August 2017 |
| Contract |
W912ER-16-P-0014, W912ER-17-P0031, W912ER17-C-0013 |
The contractor continues to enhance their resources and expand their workforce with skilled tradespeople. Their safety plan, approved by the CEMED Safety Officer, demonstrates their safety commitment. The contractor's Safety Officer executes the plan diligently, with excellent coordination between Safety Office and RE.
The job-site supervisors' empowerment has increased effectiveness. The contractor implemented an organized tracking system to fully record, follow up, and warranty items. They've also improved reporting systems. As a result, the customer is extremely satisfied with the quality relative to cost.
Interdyne’s proactive management, strong communication, and tireless efforts to meet and exceed timelines have reflected very positively on the company.
Contractor overcame issues like unavailable parts and executed the tasks smoothly with full compliance. Performance met all contractual requirements.
Interdyne practiced the 3 C’s: Communicate, Coordinate, and Cooperate. Delivered 100% quality to USACE standards under extreme conditions.
